thrust ball bearings for large centrifugal machines and crane hook-THB Bearings 511/500M manufacturer from China THB BEARINGS CO.,LTD

thrust ball bearings for large centrifugal machines and crane hook-THB Bearings

Price:	1000.0 USD
Payment Terms:	T/T
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 511/500M

Production Capacity: 1000pcs/month

Delivery Date: 7days

Material: GCr15SiMn

Means of Transport: Air

Packing: single wooden case

Brand Name: THB

THB single direction thrust ball bearings can accommodate axial loads in one direction and thus locate a shaft axially in one direction.

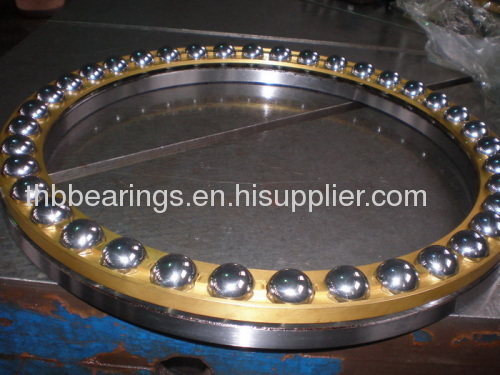

511/500M P6 thrust ball bearings for large centrifugal machines and crane hook-THB Bearings

THB single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting issimple as the washers and the ball and cage assembly can be mounted separately.

THB single direction thrust ball bearings can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.

511/500M, with brass cage, P6 tolerance

Dimensions:

Inner diameter d=500mm

Outer diameter D=600mm

Width H=80mm

Dynamic load ratings C=553KN

Static load ratings Co=3600KN

Fatigue load limit Pu=57KN

Reference speed=560 r/min

Limiting speed=800 r/min

Mass=47.0kg
